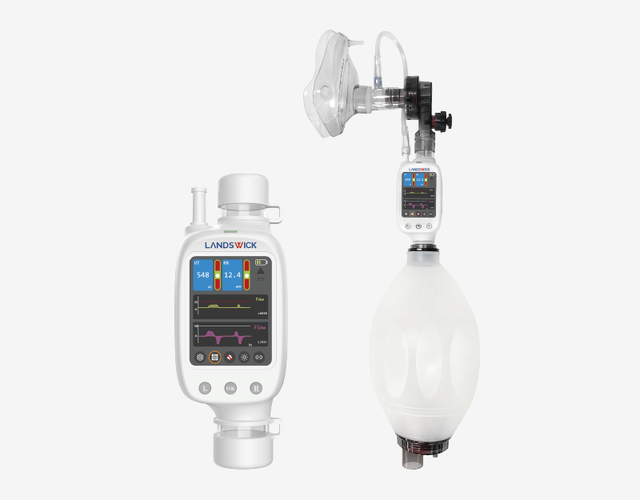

Automatic precise quantitative respirator

Product features and advantages

· National invention patent technology.

· VT, RR, MV and Flow can be configured according to patient status.

· The parameters can be configured to the 《AHA American Heart Association Resuscitation》guidelines and various clinical needs.

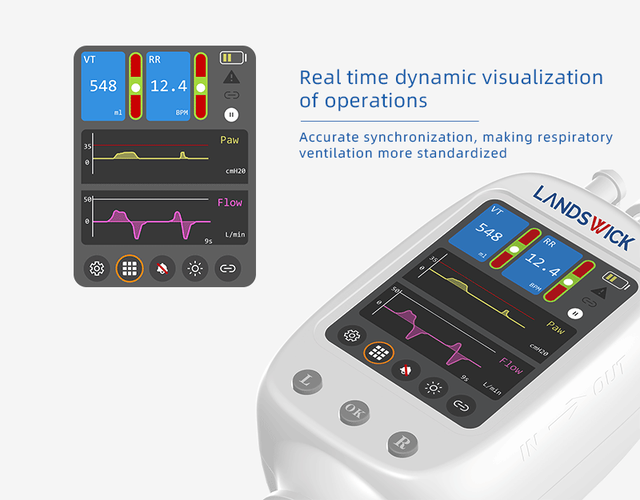

· Monitor breathing parameters: guide medical staff to accurately press the simple respirator.

· Standard interface: universal airway access for most simple respirators.

· Bluetooth information transmission, data storage and real-time monitoring APP

· Field first aid, pre-hospital first aid, hospital first aid.

· Training function: practical operation, test record and evaluation function APP.

Main technical parameters

Model

Nano100AP

Nano100N
Applicable user

Adult>33kg 10kg<Child≤33kg

Newborn≤10kg

Dimension （L×W×H）

145mmx56mmx53mm

Flow （Flow rate）

0-120L/min

0-12L/min

Vt （Tidal volume）

0-1500mL

0-100mL

RR （Respiratory rate）

0~99Times per Minute（bpm）

MV （Minute ventilation）

0-30L/min

0-4L/min
Paw （Airway pressure）

0-100cmH2O

Ppk （Peak airway pressure）
